Quick Details

  • Condition: New
  • Type: Duct Heater
  • Power Source: Electric
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: T-long
  • Model Number: U Type
  • Voltage: 220V
  • Certification: CE
  • Warranty: 1 year
  • material: molybdenum disilicide
  • purity: 99.99%
  • usage: 1700 laboratory furnace, zirconia sintering furnace
  • size: customizable
  • type: U type
  • max temperature: 1800c / 1700c
  • price: reasonalbe
  • delivery: fastest
  • quality: top
  • T-long: equipment

Packaging & Delivery

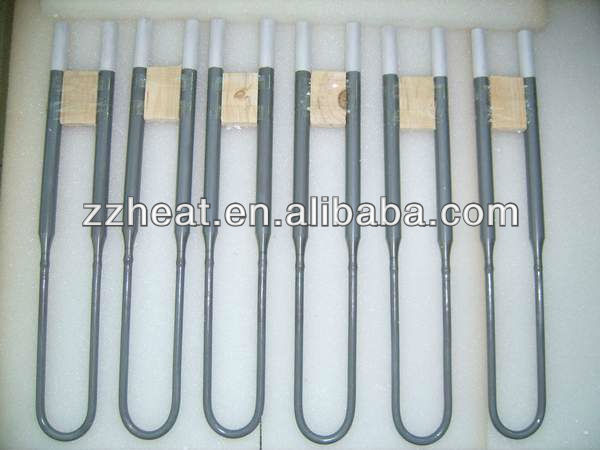

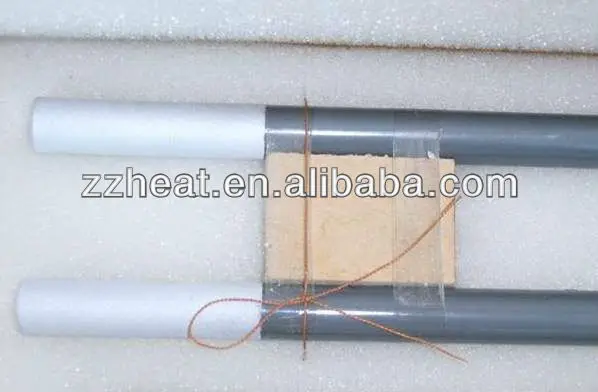

Packaging Details wooden box with plastic foam to ensure safety
Delivery Time 5-10 days

ceramic heating element for zirconia sintering furnace





Product Description

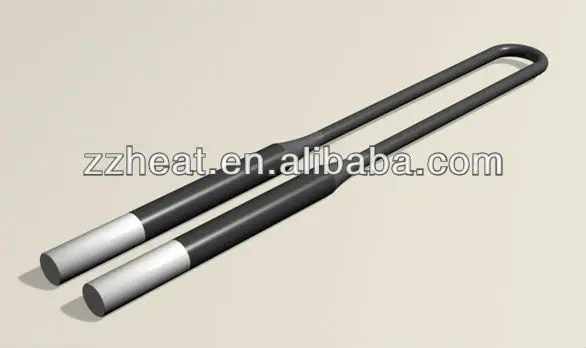

Molybdenum disilicide (MoSi2) heating element is a resistance generate-heating component made from MoSi2 or the basic material. It is used in high temperature under the oxidizing atmosphere, it looks like glass in its surface and form a light SiO2 glass film which can protect the element not to be oxidized. So this kind of element has unique effect for resisting oxidization in the high temperature. It is used to the highest temperature up to 1800C during oxidizing  atmosphere. According to your request, our company can produce the products of Pole, "U", "W" and "U"-right angle shapes, etc.



MoSi2 heating element can usually make use of furnace temperature from 1300C to 1800C. It is extensively used in the industries of metallurgy, glass, ceramic refractory, crystal electronic device, industrial furnace manufacture, etc.. It is an essential ideal element when the products are sintering in the high temperature.

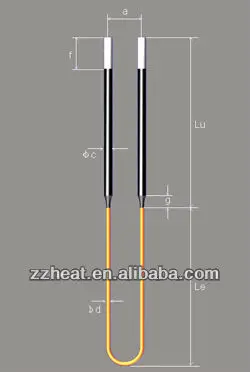

Mosi2 heater elements U type



Order sample:

d=6mm, c=12mm, Le=200mm, Lu=180mm, a=30mm

Please specify as: dia6/12x200x180x30mm (dia d/cxLexLuxa mm)
d = the diameter of hot zone
c = the diameter of cold zone
Le = the length of hot zone
Lu = the length of cold zone



Now our company supply two types MoSi2 heating elements, one is M1700 type, which ensure max. furnace temperature 1650C; another is M1800 type, which ensure max. furnace temperature 1700C. When you place order, please choose suitable type according to your furnace working temperature.

M1700 (heat furnace temperature 1650.C)

M1800 (heat furnace temperature 1700.C)




Standard sizes:
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24




 MoSi2 heating elements physics and chemistry characters:

1. Physics Characters
 VolumDensitBending Strength Vickers Hardness

Porosity

Water absorption   Heating Elongation Rate
 5.5  g/cm3 15-25 kg/cm3 (HV)570kg/mm2 7.4% 1.2%             4%

 2. Chemistry Character
    MoSi2 heating element  is used in the high temperature under oxidizing atmosphere. It will form the SiO2 film which can keep the element from being melted. During the oxidizing process, the SiO2 protecting film is formed again when the element continues to be used. The MoSi2 heating element must not be used in the temperature between 400C and 700C for a long time, otherwise the element will be cremated under the strong oxidizing function in the low temperature.


 Small Furnace (Power 100KW)

 Big Furnace (Power 100KW-500KW)

Furnace Temperature .C

Voltage

Furnace Temperature .C

Voltage

20-150

1/3



20-300

1/3

150-500

2/3

300-700

2/3

500-Working Temperature

Full

700-working Temperature

Full

Note: Shifting gear must be done quickly, otherwise high current surges may cause damage.




Notice to Furnace Operation:
       To avoid high current surges which may cause damage to MoSi2 heating elements, the recommend starting procedure as following:




MoSi2 Heating Element's installation:

The brittleness of MoSi2 heating  element is relative more under the usual temperature, it also has plasticity under the high temperature. So you had better hang and erect vertically the "U"-shape element. If you need to erect it horizontally, please choose a support of high-temperature insulating materials. The cone-part of the element must extend inside the furnace. At first the fixture of MoSi2 power connector cant be screwed too tightly.

When temperature of the element is going up,  please twist it tightly again, so the element is not easily broken. (our suggestion: please choose the specialize power connector provided by our company) The furnace top must be a good function of heat-preservation. In general, the temperature of furnace top cant be over 300C. The voltage should be low 0.1 between the power connector and the element. In order to avoid radiating heat to pass the connector, the distance is not less than 50mm between the low end of connector and the upside of the ceramic brick. The Dia.6 element cant be used of 170A for a long time. The Dia.9 element cant be used of 300A for a long time.

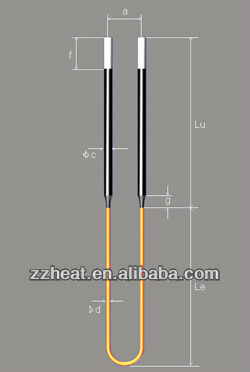

When you place order, please choose suitable type according to your furnace working temperature and kindly tell us the following dimensions



cHot Zone Diameter

d: Cold Zone Diameter

Lu: Cold Zone Length

Le: Hot Zone Length

a: Shank Spacing



If you have the special requirement for the resistance, please tell us!
