Quick Details

  • Classification: Laboratory Heating Equipments
  • Brand Name: T-Long
  • Model Number: TZ-1200OTF-3
  • Place of Origin: Henan, China (Mainland)
  • Working temperature: 1100C
  • Temperature Control: 30 steps programmable and PID automatic control
  • Max working temperature: 1200C
  • Heater: Fe-Cr-Al resistance wire
  • Usage: Sintering furnace
  • Heating Rate: 0~10.C/ min (suggestion:=< 10.C)
  • Temperature Accuracy: + 1.C
  • Heating Element: Fe-Cr-Al-Mo resistance wire
  • Max. Power: 8KW
  • Inside Chamber Size: dia60/80/100x1000/1200/1500mm

Packaging & Delivery

Packaging Details Plastic paper inside, Polyfoam filled, Wooden box outside
Delivery Time 15 days after receiving the payment

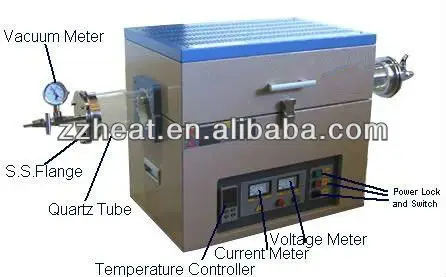

Reliable High Temperature Lab Electric Quartz Tube Furnace


Introduction:

The tube furnace is split with two, three or five heating zones, which can achieve faster heating up to 1200°C and create a different thermal gradient by adjust different heating zone temperature

Application:

 prepare functional materials under thermal gradient, epitaxial film growth by CVD or PVD with a vacuum system, and also can be used for annealing, diffusing and sintering sample in various atmospheres.



Features:



*The furnace chamber size can be customized;

*Can be designed to two,three,four or five heating zones;

*Encough stock to ensure fast delivery;

*Temperature control can reach to ±1°C;

*Small volume, good working performance, nice outlook, less consumption and convenient to move;

*Programmable automatic temperature control system;

*Communication software with USB cable to computer (optional);







Standard Size:

Code

TZ-1200 TF-2

TZ-1200 TF-3

TZ-1200 TF-5

Tube Outer Diameter

40/60/80/100 mm

40/60/80/100 mm

40/60/80/100 mm

tube heating zone length

300x300

/450x450

300x300x300

/450x450x450

300x300x300x300x300

/450x450x450x450x450

tube size

60/80/100x1000/1200/1500mm

60/80/100x1000/1200/1500mm

60/80/100x1000/1200/1500mm

Heating Zone

2 zones

3 zones

5 zones

Max. Temperature

1200C

1200C

1100C

Working Temperature

1100C

1100C

1100C

Temperature Control

30 segments programmable

and PID auto control

30 segments programmable

and PID auto control

30 segments programmable

and PID auto control

Heating Element

Fe-Cr-Al-Mo wire

Fe-Cr-Al-Mo wire

Fe-Cr-Al-Mo wire

Furnace Chamber

split type

 split type

 split type

Furnace Structure

double shell with cooling fan

double shell with cooling fan

double shell with cooling fan

Heating Rate

≤20°C/min

≤20°C/min

≤20°C/min

Temperature Accuracy

±1°C

±1°C

±1°C




Note: The furnace tube is quatz tube
              Dia60mm means outer diameter, inner diameter is about 54mm
              300mm means the length of each hot zone



Plastic paper inside, Polyfoam filled, Wooden box outside








Company Information

We're most professional OEM of furnace, MoSi2 heating elements and SiC heating elements in China, All our works pwn working experience in heating elements and furnaces for 3-10 years, akilled ability to produce perfect products!









Q1. Are you a manufacturer?

Yes, we are the manufacturer specialize in high temperature furnaces and heating elements.

Q2. How to get a quotation?

You can contact us online or send email directly.

Generally,we need to know the furnace type,the temperature and the working room size you need.If you have no specific idea,let us know your test request.We would try our best to recommend a suitable item to you.

Q3. How long does it take to get the goods?

Normally 7-20 working days.

Q4. Do you inspect the finished products?

Yes,each step of production and finished products will be carried out inspection by QC department before shipping.

Q5. How to transport the products?

By sea,by air and by express is optional depending on the demand of client.

Q6. The end user has more request to this furnace,is it ok? what's the minimum order quantity?

We provide the customizing service.In consideration of the limited need of end use,the MOQ is just 1set.

Choose T-Long, you will get best service and perfect products. Welcome your inquiry and trail order!!!
