Quick Details

  • Classification: Laboratory Heating Equipments
  • Brand Name: T-Long
  • Model Number: TZ-1200Mini
  • Place of Origin: Henan, China (Mainland)
  • Usage: heat treatment and sinter furnace,sinter/heat trement furnace
  • Max. Temperature: 1200C
  • Power: Electronic
  • Cooling methord: double fans
  • Controller: 30 segments programmable and PID control
  • Delivery: in stock
  • Name: Mini muffle furnace dental laboratory supply

Packaging & Delivery

Packaging Details preservative film wrap the furnace. Foam filled with outer wooden box. free of any damage during transport
Delivery Time 25 days after receiving the payment

      Small electric muffle furnace For Zirconia Sintering

Company Information



We have 8 engineers and 23 technicians. We have introduced the latest production equipment and frontier technologies, and we already have the production capacity of more than 500 sets of various electric furnaces and more than 30 tons of MoSi2 heating elements annually. The annual output value is more than fifteen million Yuan. We are committed to providing customers with high quality products.





TZ-1200Mini furnace detailed description:

 Chamber size
200x200x200mm(WxHxD)
Max.Temperature
1200C
Working temperature
1100C
Temperature  accuracy
+ 1.C

Temperature controller
30 segments programmable and auto control
Heating elements
 Fe-Cr-Al-Mo wire
Voltage
220V 50HZ, single phase
Power
4kw



Product Description:
  Operation Temperature:  1100.C  ( 1200.C Max for short time).

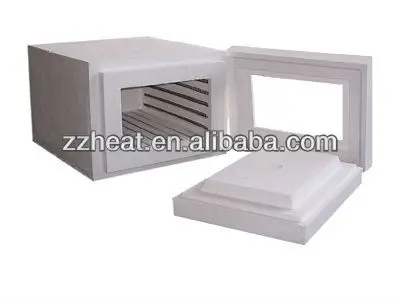

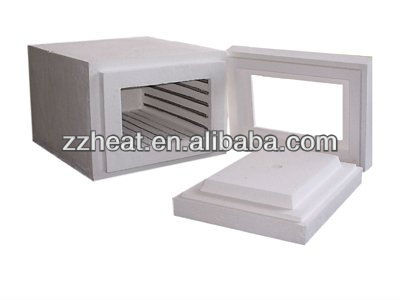

  Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
  Three sides resistance wire coil for fast and uniform heating.
  Heavy duty double layer structure with cooling fan.  Lower teperature in outside case.
  0.5" diameter observation window made of quartz galss allow user to see insider chamber during heating operation.
  K type thermocouple installed for immediate use.
  Temperature controll unit can be separated from furnace , and make moving at easy.
  PID automatic control via current limiting phase angle fired the resistor , e.g. SCR ( Silicon Controlled Rectifier)
  Power contrl with 30 segments programmable.
  Vent port installed on the top for gas flow. ( gas outlet)

Applications:
   Gravimetric analysis
   Sintering
   Quantitative analysis
   Heat treating
   Glass preparation

Standard sizes:


 Type Furnace size Working / Max. temperature Delivery time
 TZ-1200N 120x120x130mm 1100°C/1200°C 1 day (in stock)
 TZ-1200N 150x150x150mm 1100°C/1200°C 1 day (in stock)
 TZ-1200N 150x150x200mm 1100°C/1200°C 1 day (in stock)
 TZ-1200N 200x200x200mm 1100°C/1200°C 1 day (in stock)
 TZ-1200N 200x200x300mm 1100°C/1200°C 1 day (in stock)
 TZ-1200N 300x300x300mm 1100°C/1200°C 25 days (out stock)
 TZ-1200N 300x300x400mm 1100°C/1200°C 1 day (in stock)



















Our Services



Provide competitive price

Arrange prodcution on time

Control product quality and delivery time

Provide finished products and packing photos

Book the earliest and fast vessel

Provide original document and original certificate
