Quick Details

  • Condition: New
  • Type: muffle furnace, Mini Laboratory furnace
  • Usage: Heat Treatment Furnace, heat treatment and sinter furnace,sinter/heat treatment furnace
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: T-Long
  • Model Number: TZ-1700Mini
  • Voltage: 220V
  • Power(W): 1KW
  • Dimension(L*W*H): 100x100x100
  • Weight: 78kg
  • Certification: CE
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Max. Temperature: 1700C
  • Power: Electronic
  • Controller: 30 segments programmable and PID control
  • Heating elements: MoSi2 heater
  • Cooling methord: double fans
  • Structure: furnace chamber with electric cabinet together
  • Delivery: in stock
  • Quality: CE guaranteed

Packaging & Delivery

Packaging Details preservative film wrap the furnace. Foam filled with outer wooden box. free of any damage during transport
Delivery Time 2-15 days after receiving the payment

TZ-1700 mini Dental Lab zirconia crown sintering furnace



Furnace Construction:

• TZ-1700 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace ).
• Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 °C.

Specification:

Chamber Size100x100x100mm (4"x4"x4", 1L)
Power1000 W Max. ( power cord is included )
VoltageAC 110V or AC 220V 50/60 Hz (please tell us when your place order.)
Max. Temperature1700 °C  (< 1 hour)
Continuous work temp.1600-1650°C
Max. Heating Rate30 °C /min
Temperature controller• PID automatic control and auto-tune function.
• 30 programmable segments for precise control.
• Built in protection for over-heated and broken Thermal couple.
• Larger digital control panel (48 x 96 mm) for easy operation.
Temperature Accuracy+/- 1 °C
Heating Element1700 °C super MoSi2 heating elements imported from USA
Thermal CoupleB type
Outer Dimension320x385x520mm
Gross weight with package78 Kgs
Accessories (free charge)

1 pair of glove1crucible tong2pcs MoSi2 heating elements

Others:

Software to control furnace through computer
(if you need, additional order)
 • Communication module installed in temperature controller
• software –TCS(Temperature Control System, available for Win2003, Win XP)
• One USB cable, one RS485 Serial interface.
WarrantyOne year limited warranty (Consumable parts such as thermocouple, o-rings and heating elements are not covered by the warranty, please order the replacements at related products below.)

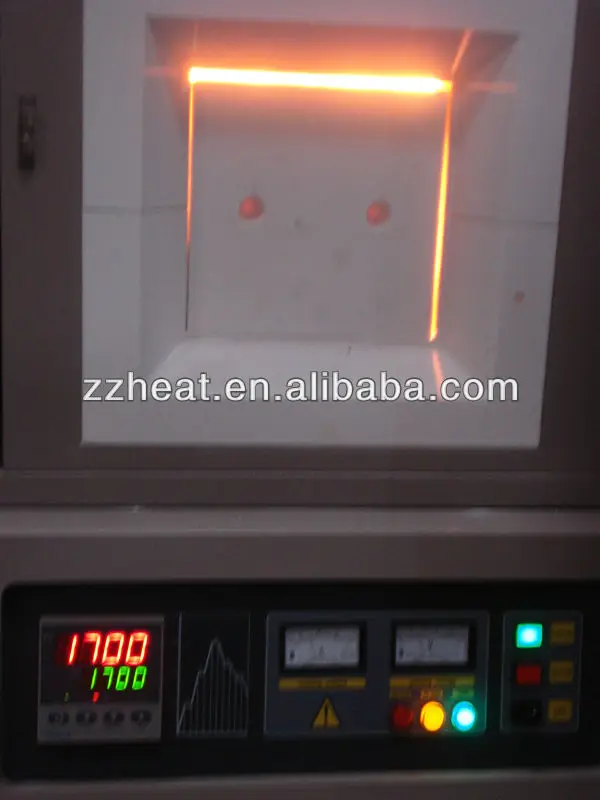

Top Structure Of Furnace:



MoSi2 Hearter:

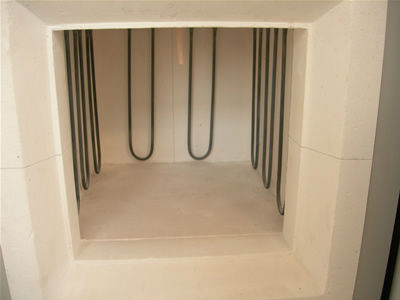

Furnace champer:






Standard Package:
